1. Why Choosing the Right Shelving Matters

The wrong shelving system leads to wasted space, reduced throughput, increased injury risk, and high maintenance costs. Conversely, a well-chosen system can triple storage capacity and dramatically reduce picking times. Getting this decision right from the start saves significant money over the long term.

2. Assess Your Storage Requirements First

Before comparing products, answer these fundamental questions:

• What is the weight of your goods? Under 100 kg/level → boltless shelving; 100–500 kg → medium duty; over 500 kg → pallet rack.
• What are the dimensions and shape? Long items like pipes, timber, or rolls require cantilever rack. Palletized goods need pallet racking.
• How often do you pick? Fast-moving, high-rotation stock needs direct access (selective rack). Slow-moving bulk storage benefits from high-density systems (drive-in).
• How many SKUs do you handle? Many different SKUs → prioritize accessibility. Few SKUs in large quantities → prioritize density.

3. Comparing the Main Industrial Shelving Types

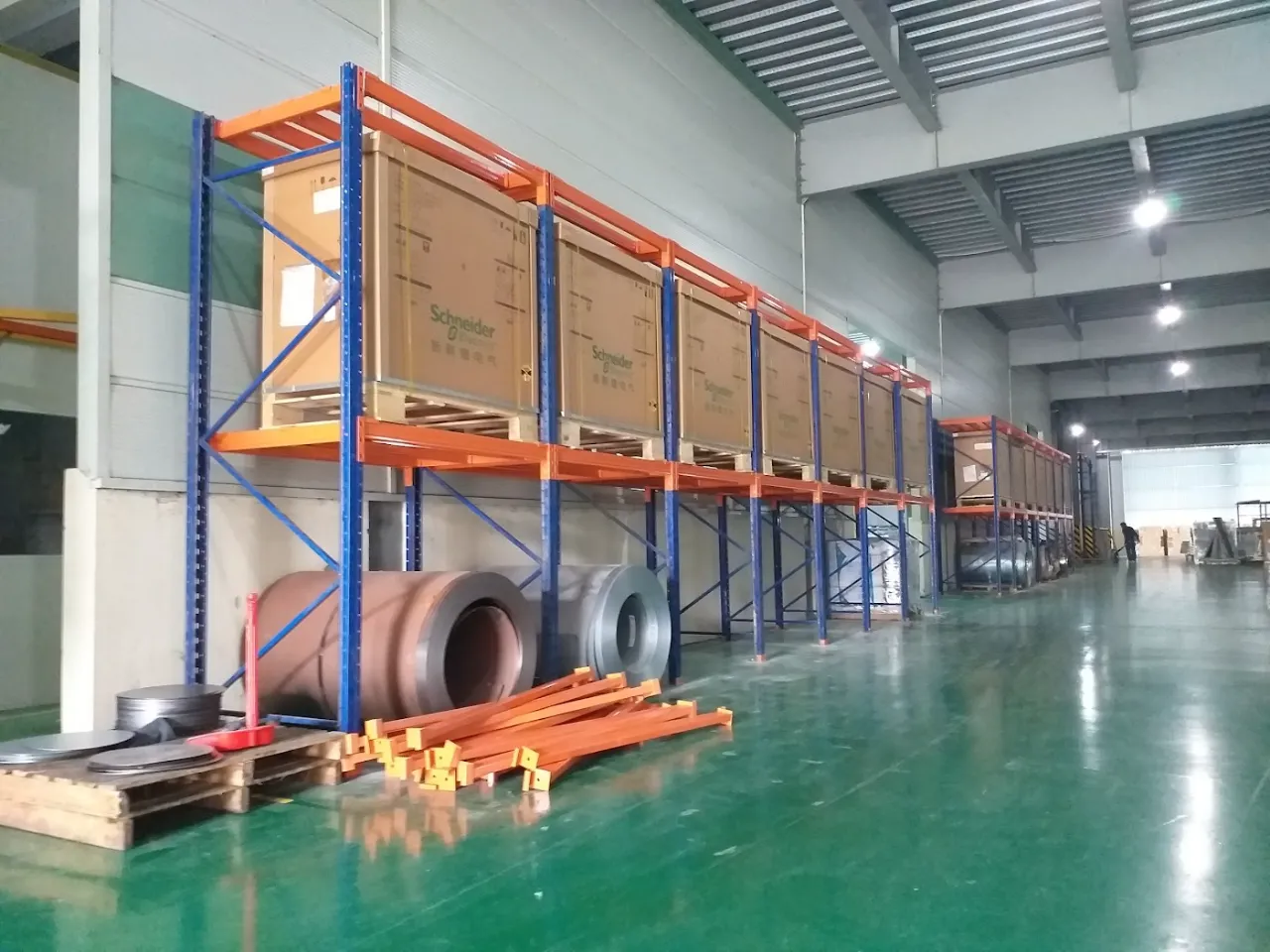

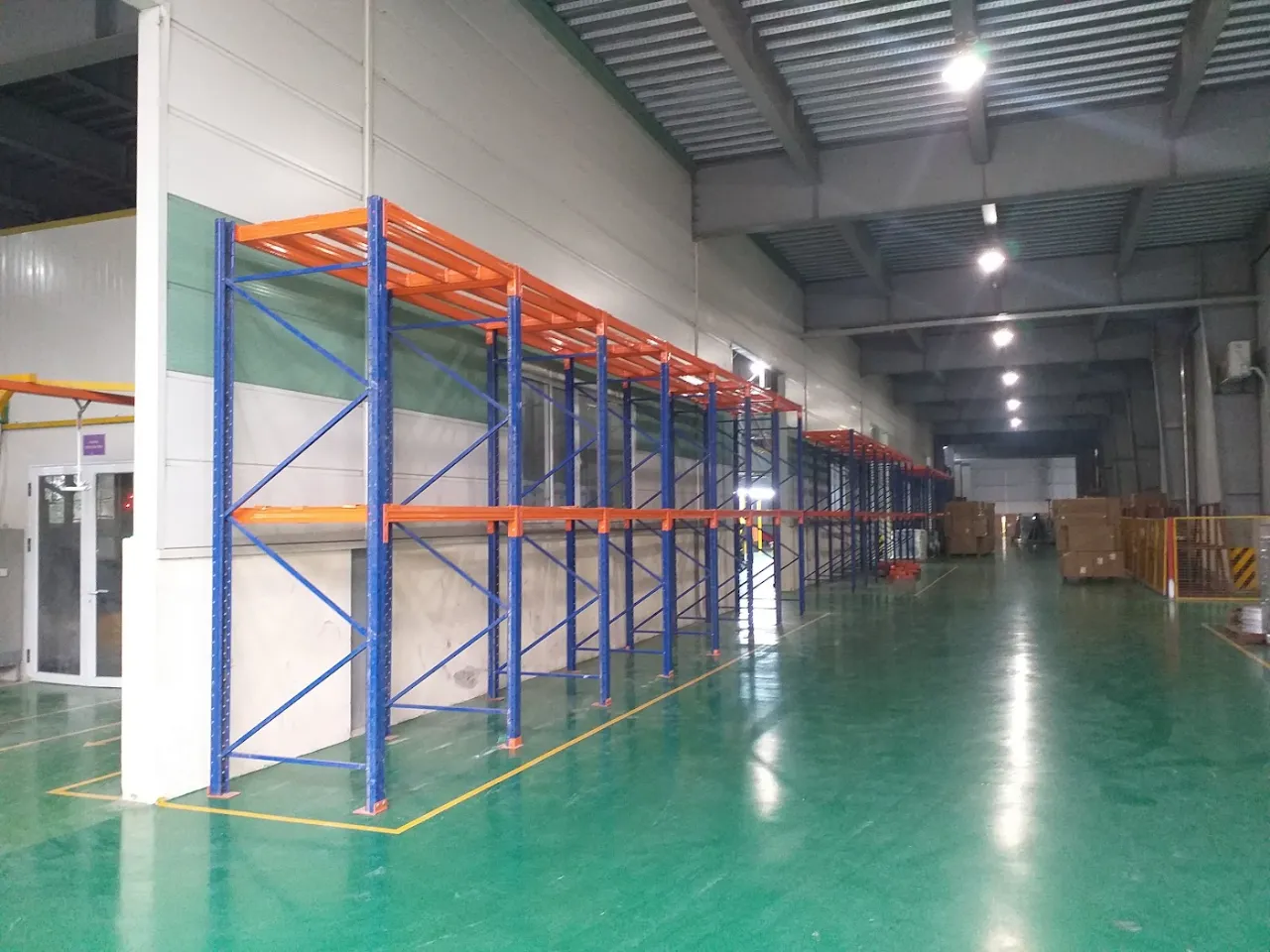

3.1 Selective Pallet Rack

Best for: Multi-SKU warehouses, fast-moving inventory, direct pallet access needed.

Load: 500–5,000 kg/level | Pro: Maximum flexibility | Con: Lower storage density vs. drive-in.

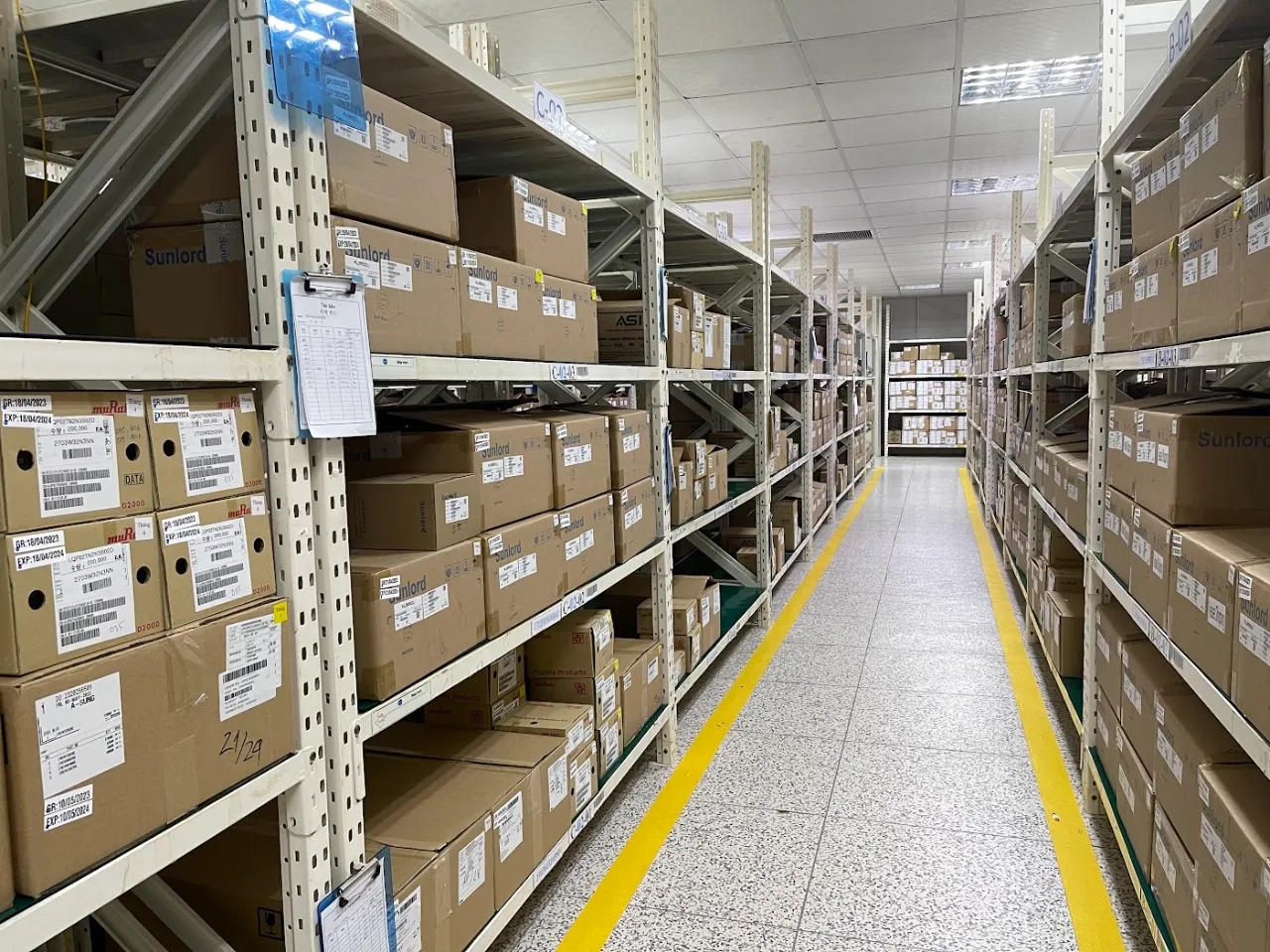

3.2 Medium Duty Shelving

Best for: Retail back-of-house, smaller warehouses, light to medium consumer goods.

Load: 100–500 kg/level | Pro: Cost-effective, easy assembly | Con: Not suitable for heavy industrial loads.

3.3 Boltless Shelving (Gama)

Best for: Small stores, offices, diverse lightweight items needing frequent rearrangement.

Load: 50–200 kg/level | Pro: Tool-free assembly, flexible | Con: Lower capacity.

3.4 Mezzanine Floor

Best for: High-ceiling warehouses (5m+) seeking to double usable floor area.

Load: 300–750 kg/m² | Pro: Doubles floor space | Con: Higher upfront investment.

3.5 Mobile Shelving

Best for: Space-constrained environments — archives, pharmaceuticals, frozen food storage.

Load: Configuration-dependent | Pro: 50% space saving | Con: Higher cost, slower access.

3.6 Cantilever Rack

Best for: Long, awkward items — steel pipe, aluminum profiles, timber, carpet rolls.

Load: 200–2,000 kg/arm | Pro: No vertical obstruction | Con: Only suitable for long goods.

4. A 5-Step Selection Process

Long Quyen recommends this structured approach to shelving selection:

• Step 1: Survey your facility — floor area, clear height, column positions, forklift aisle requirements.
• Step 2: Catalog your inventory — dimensions, weights, SKU count, turnover frequency.
• Step 3: Assess your equipment — forklift type, pallet jack, or manual handling.
• Step 4: Create a layout plan — seek free design support from your supplier.
• Step 5: Compare quotes — get at least 2–3 proposals from reputable manufacturers.

5. Why Choose Long Quyen?

Long Quyen is a leading Vietnamese manufacturer of industrial shelving and warehouse storage systems with over 15 years of experience. We offer:

• Free warehouse layout design and consultation
• Products meeting international load-bearing standards
• Professional on-site installation teams
• 12–24 month product warranty
• After-sales maintenance support nationwide

Contact Long Quyen today for a free consultation and the best shelving quote for your warehouse!

Liên hệ tư vấn miễn phí:

How to Choose the Right Industrial Shelving for Your Warehouse: A Complete Buyer's Guide

Selecting the right industrial shelving system is one of the most impactful decisions a warehouse manager can make. The wrong choice leads to inefficient space utilization, slow picking speeds, safety hazards, and costly retrofits down the line. This guide walks you through every factor you need to evaluate before making your investment.

Step 1: Define Your Load Requirements

The first and most critical parameter is load capacity. Weigh your heaviest unit load — including the pallet — and multiply by the number of positions per level. Then multiply by the number of levels to determine the total load per upright frame. Never estimate; always measure actual loads.

Industrial shelving is typically categorized as: light duty (up to 150kg/shelf), medium duty (150–500kg/shelf), heavy duty (500–2000kg/shelf), and pallet racking (1000–3000kg/pallet position). Matching the load category to your actual needs prevents both over-engineering (wasting budget) and under-engineering (safety hazard).

Step 2: Assess Your Inventory Profile

Your inventory structure determines which shelving system fits best. Answer these key questions: How many SKUs do you carry? What is your average inventory depth per SKU (how many units of the same product do you typically hold)? What is your product turnover velocity? Do any products have expiration dates requiring FIFO management?

High SKU diversity with low depth per SKU → selective rack or medium-duty shelving. Low SKU count with high depth → drive-in rack or push back rack. High turnover with FIFO requirement → flow rack. Mixed profile → a combination system designed by a specialist.

Step 3: Evaluate Your Building

Measure the clear height (floor to lowest obstruction — beams, sprinklers, lighting), the floor load capacity (pounds per square foot or kg/m²), column positions and spacing, and fire suppression system coverage. The top beam of your shelving should be at least 18 inches (45cm) below the lowest sprinkler deflector per NFPA 13 guidelines. Floor load capacity must exceed the point load from your shelving legs and forklifts combined.

Step 4: Match the Forklift to the System

The shelving system and the handling equipment must be designed together. Counterbalance forklifts require the widest aisles (3.5–4.5m) but are most versatile. Reach trucks reduce aisle width to 2.7–3.2m. Double reach trucks are needed for double-deep racks. Narrow aisle trucks (VNA) allow aisles as narrow as 1.6–1.8m. The narrower the aisle, the more expensive and specialized the equipment — but the higher the storage density.

Step 5: Consider Long-Term Flexibility

Warehouse needs evolve. Prioritize systems that can be reconfigured, extended, or relocated. Selective racks can be adjusted in beam height in minutes. Drive-in systems are difficult to reconfigure. Mezzanine floors can be disassembled and moved to a new facility. Always think 5–10 years ahead when choosing a system.

Step 6: Verify Certifications and Safety Standards

Industrial shelving should comply with recognized standards: EN 15512 or FEM 10.2.02 (Europe), RMI/ANSI MH16.1 (North America), or AS 4084 (Australia). In Vietnam, ensure the manufacturer can provide load test documentation and structural calculations. Long Quyen supplies shelving with full technical documentation and 5-year structural warranty.

Budget Planning

Factor in not just the cost of the shelving itself, but also installation, floor anchoring, column protectors, signage, and any modifications needed to the building. A complete budget typically adds 20–30% to the bare equipment cost. Contact Long Quyen at 0903422179 / 0903412296 / 0903434374 or contact@giakelongquyen.com for a free site survey and quotation.

Liên hệ tư vấn miễn phí:

Complete Guide to Choosing Industrial Shelving: Key Factors That Matter Most

Selecting the right industrial shelving system is one of the most consequential decisions in warehouse design. The wrong choice costs you in three ways: inefficient space utilization, operational bottlenecks, and safety risks. This guide covers the essential factors to evaluate before committing to any industrial shelving investment.

Step 1: Understand Your Inventory Profile

Before evaluating any shelving system, you need a clear picture of what you're storing. Key data points: How many SKUs do you manage? What is the weight range per storage unit (from lightest to heaviest)? What are the dimensions of your largest and most common items? What is your inventory turnover — how frequently do items move in and out? Which SKUs move fastest (your A-items)?

This data drives every subsequent decision. A warehouse with 50 SKUs in high quantities needs a completely different solution than one managing 5,000 SKUs in small quantities. Many businesses skip this analysis and end up with shelving designed for a generic warehouse rather than their specific operation.

Step 2: Match Shelving Type to Load Requirements

Light duty shelving (up to 100 kg per shelf): Suitable for office supplies, light retail stock, documents. Not appropriate for industrial warehouse environments. Medium duty shelving (100–500 kg per shelf): The workhorse of most industrial warehouses. Appropriate for packaged goods, automotive parts, electronics, food products in boxes. Heavy duty pallet racking (500 kg+ per level): Required for full pallet loads, heavy machinery parts, bulk storage. Requires forklifts for operation.

Step 3: Evaluate Your Building Constraints

Clear height — the usable vertical space between floor and the lowest overhead obstruction (beams, sprinkler heads, lighting) — determines maximum shelving height. Measure at multiple points; clear height often varies across the building. Floor load capacity must be verified before installing heavy shelving. In older industrial buildings or upper floors, the floor may not support the concentrated loads of heavily loaded pallet racking.

Aisle width requirements depend on the material handling equipment you use. Before finalizing any layout, confirm the turning radius and operating clearances for the specific forklifts or pallet trucks that will work in those aisles.

Step 4: Consider Future Flexibility

Adjustable beam heights give you the flexibility to reconfigure shelf levels as your product mix changes — a feature worth paying for. Fixed-height welded shelving is cheaper upfront but forces you to buy entirely new shelving when requirements change. Modular systems that can be expanded by adding bays or frames cost more per unit but allow incremental investment aligned with business growth.

Step 5: Verify Safety Certifications and Load Ratings

Industrial shelving sold in Vietnam should ideally carry load ratings verified by independent third-party testing, not just manufacturer claims. Request mill certificates for the steel used in construction, and ask for the test report showing how load ratings were determined. Reputable suppliers will provide this documentation without hesitation; those who cannot should be disqualified from your selection process.

Long Quyen manufactures industrial shelving to EN 15512 standards with full technical documentation available for every project. Our engineering team provides free load calculations, layout design, and site assessment before any purchase decision. Contact us for a no-obligation consultation and quotation.
